Hardware

The interface slot of the P7001 processor is a dual slot design. The USB Interface takes advantage of that. One slot is used for the circuit board and the other is used for mechanical stability.

Interface 45 view

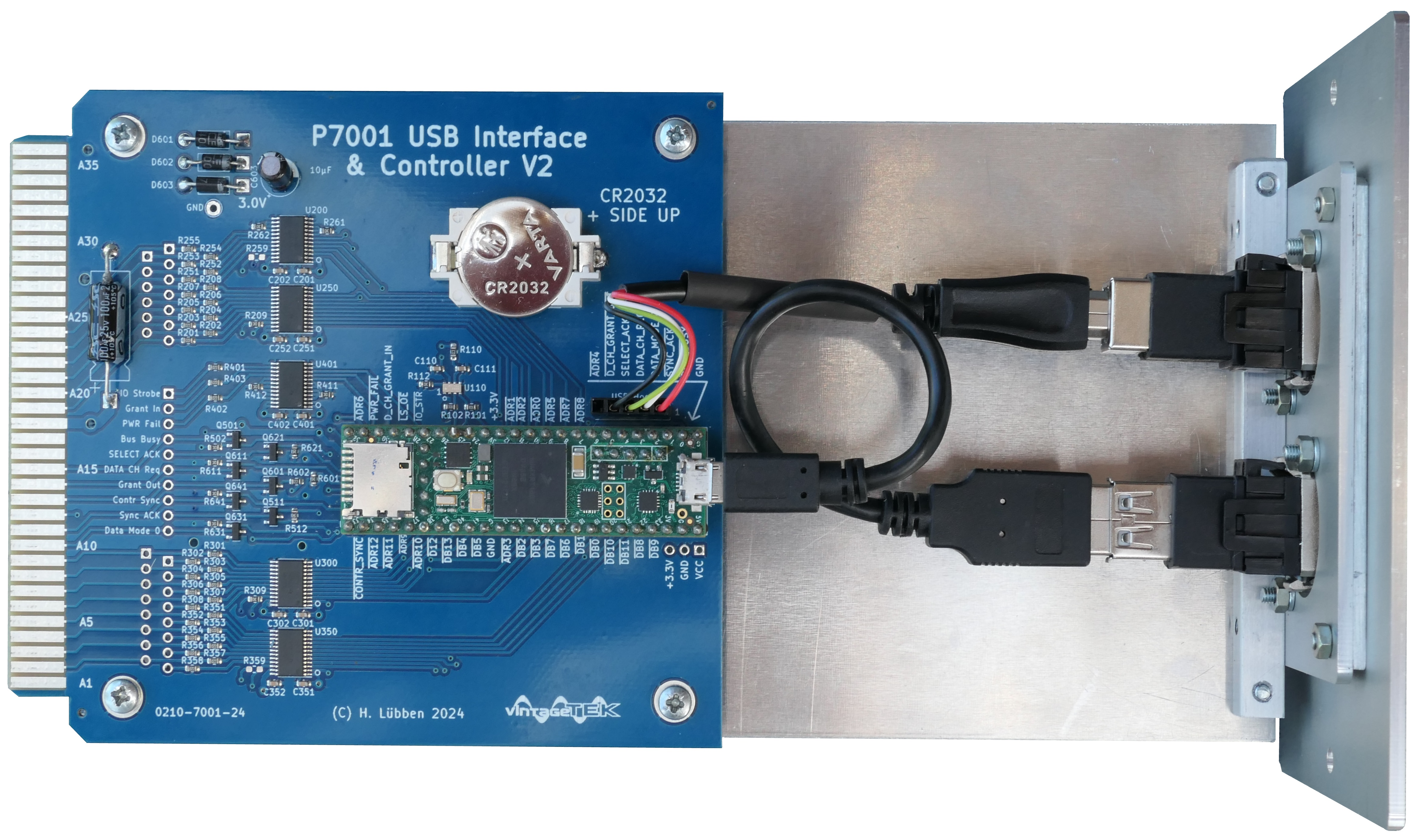

Sideview of the version with 2 USB connectors:

Interface V2 side view

Optionally, the module can be equipped with an electrically isolated USB interface.

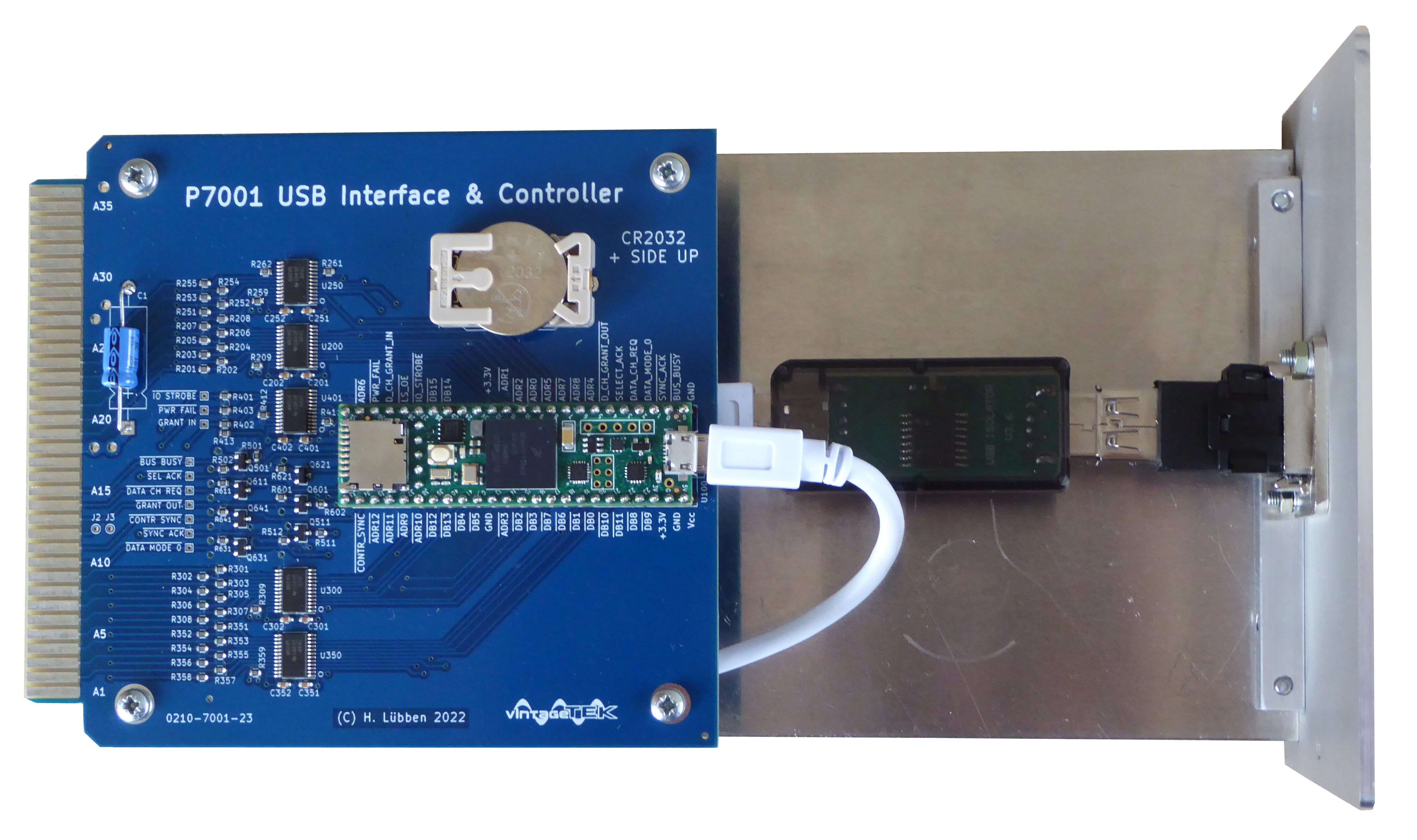

Interface V1 side view

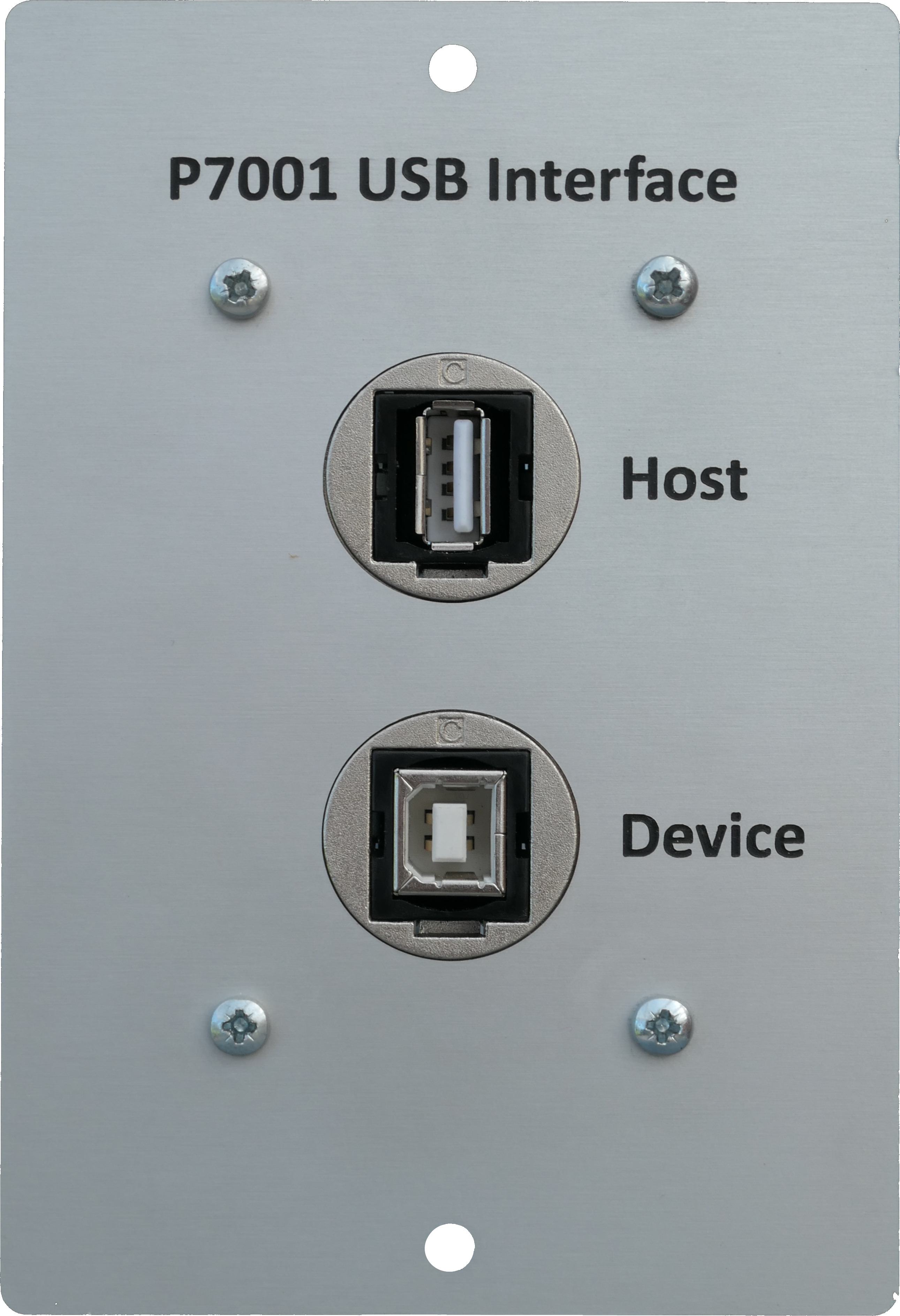

The Rear panel with its pan-headed screws was designed to match the other panels at the rear of the DPO.

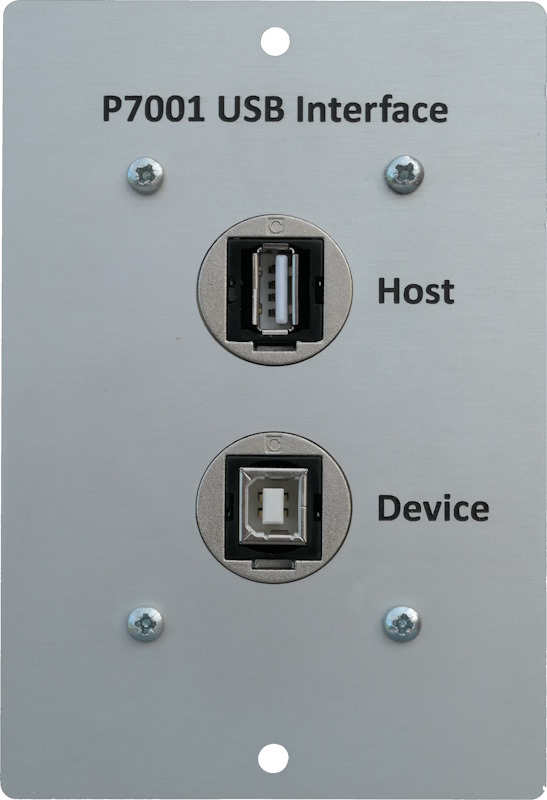

Interface front panel view

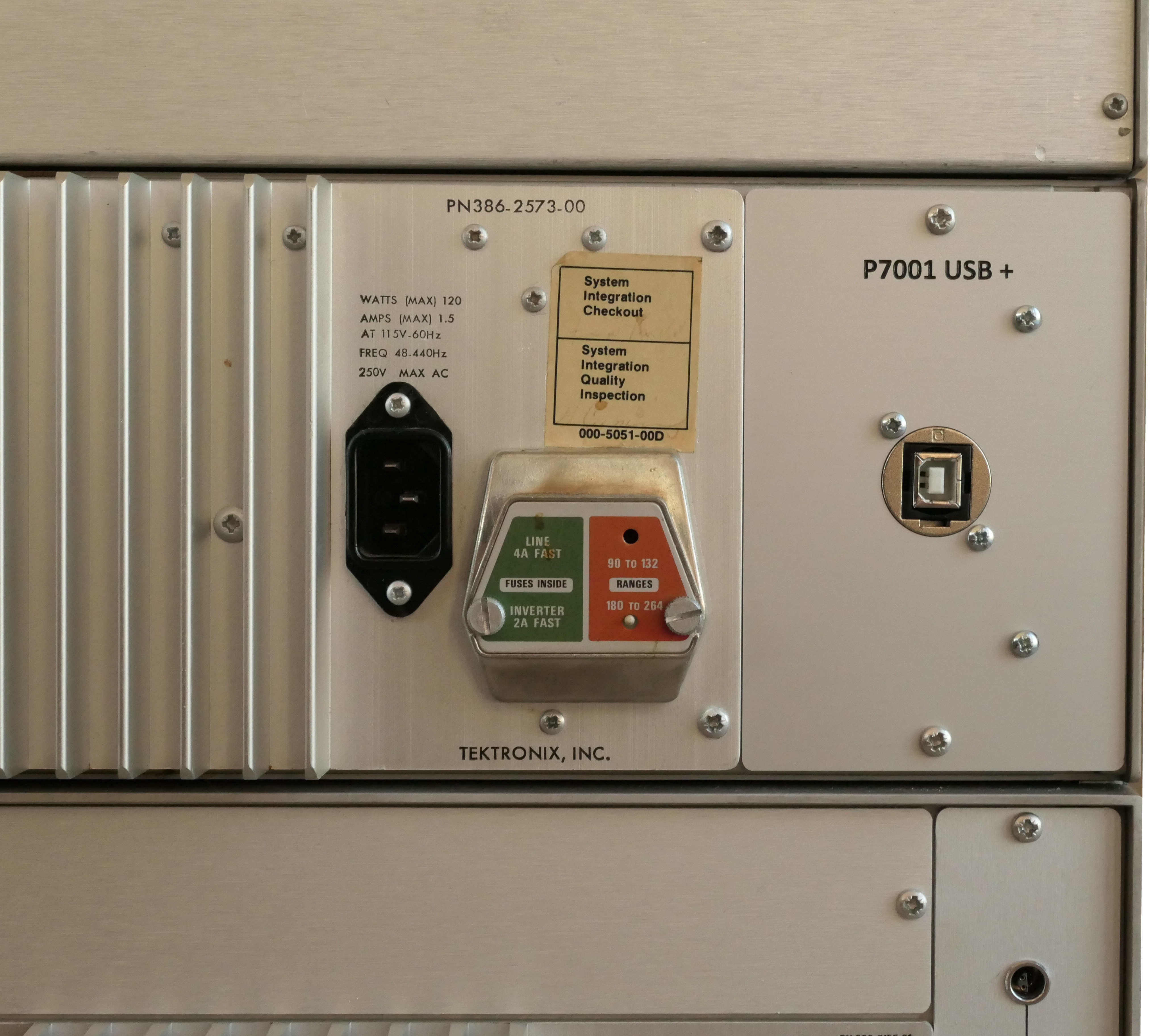

Closeup of the USB Interface mounted to the DPO.

Interface mounted in P7001
