Graphics Demo

This subprogram demonstrates the capabilities of the software-controlled X/Y mode.

Instructions of the graphics demo

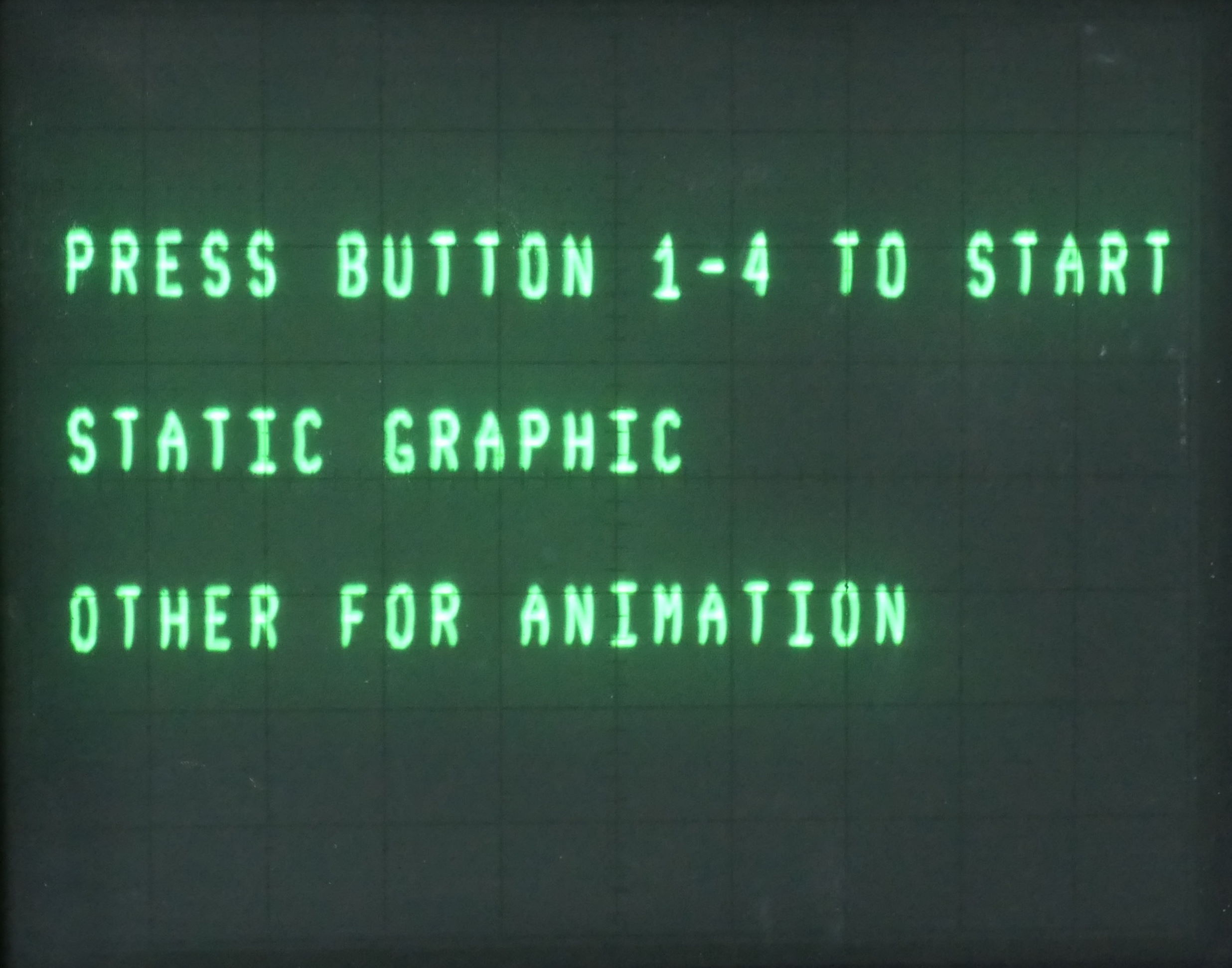

The user can choose between a static graphic and an animation sequence.

Static version of the graphics demo

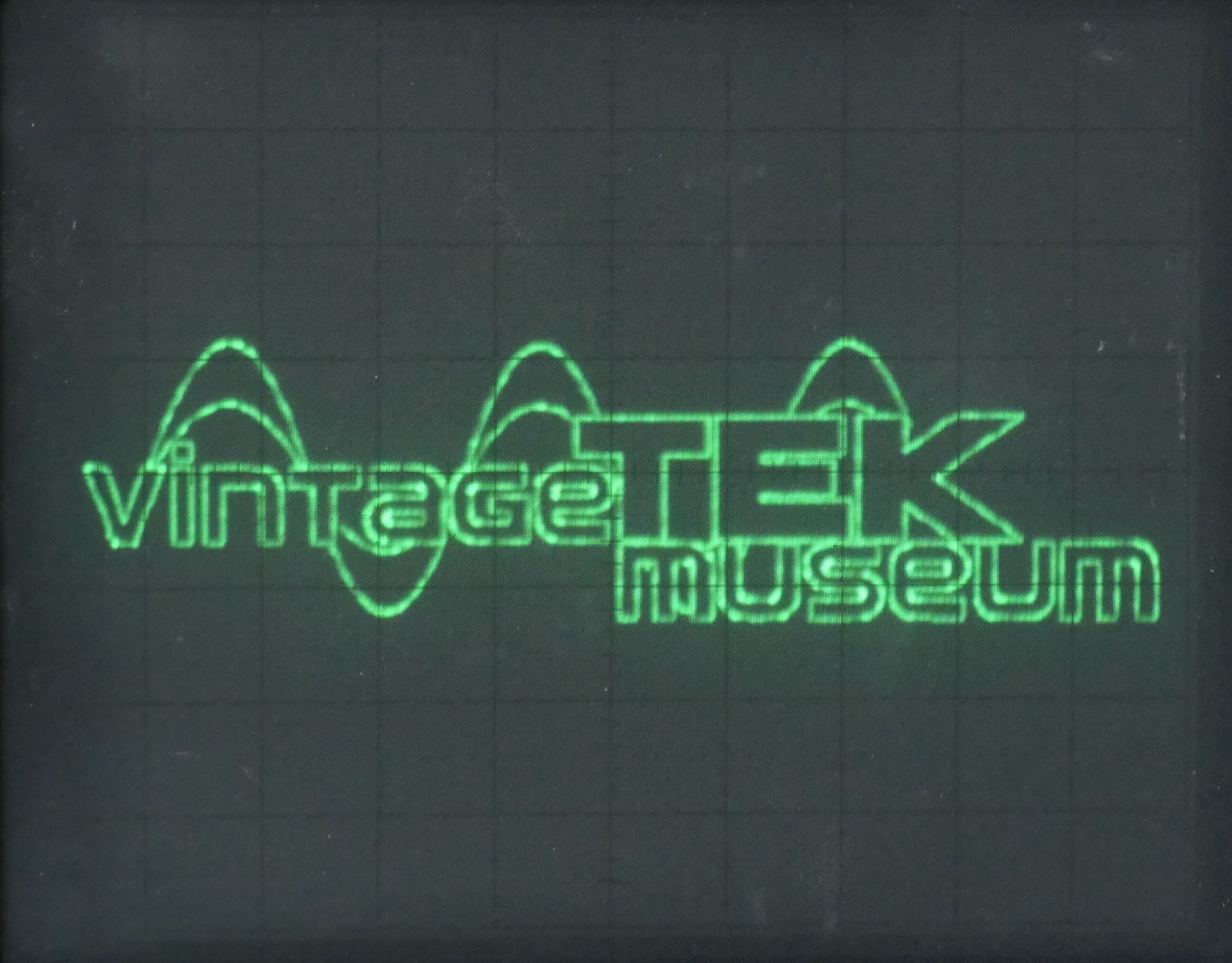

The logo of the vintageTEK museum is drawn by 33 shapes with 2901 points in total. The data transfer rate of 124,900 points per seconds results in a frame rate of 43 images per second.

A short video of a graphics demo can be found here.
