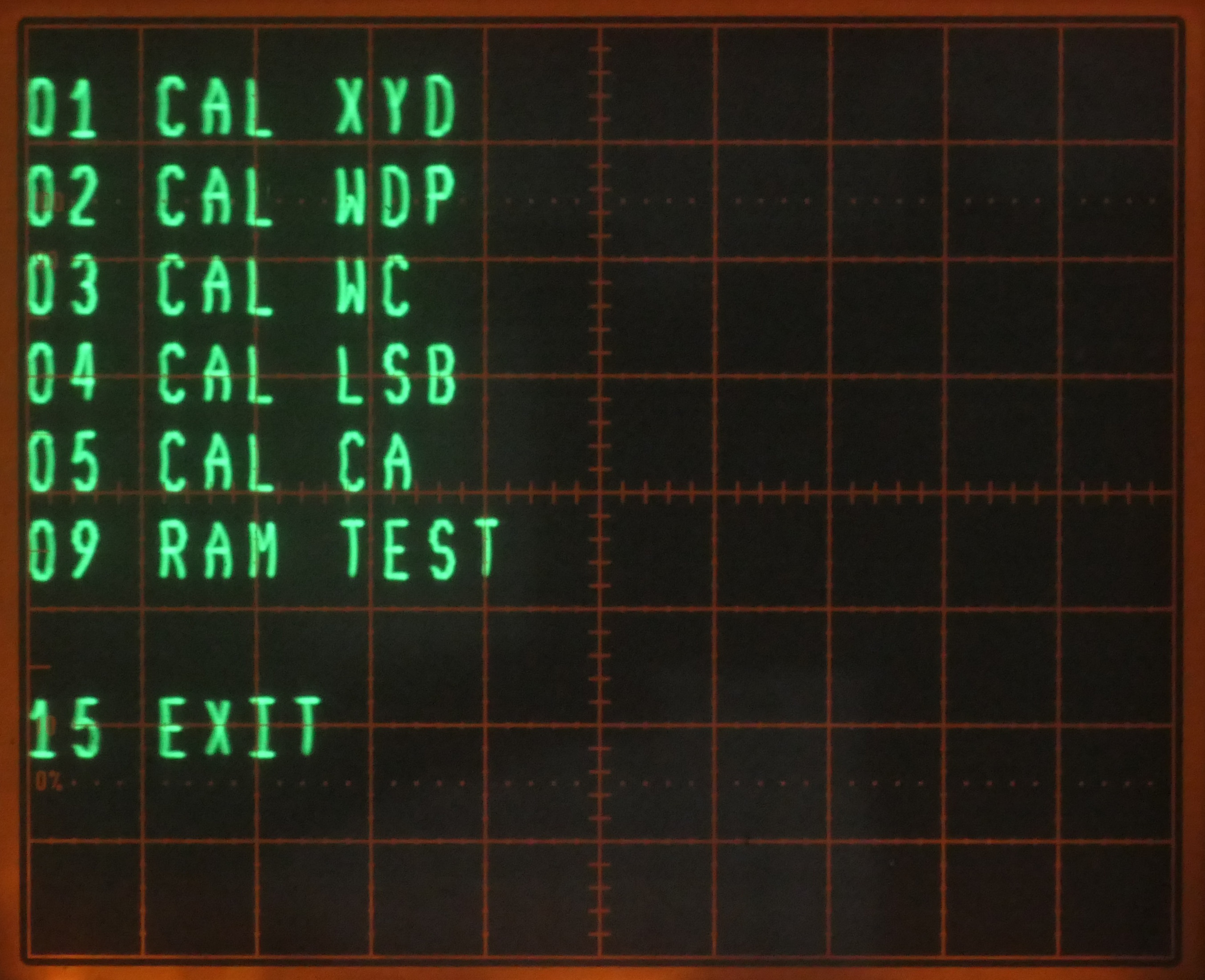

Calibration Menu

The interface firmware provides some programs which are needed for proper calibration of the DPO. The programs are described in detail in the Tektronix manual “Checkout Software”, 070-1612-00. Flowcharts can be found in the System and Calibration Manual, 070-1600-00.

Button	Name	Program to start
1	CAL XYD	X-Y Display Waveform (XYD)
2	CAL WDP	Calibrate Waveform
3	CAL WC	WORST CASE TEST
4	CAL LSB	A-D Converter LSB Gain
5	CAL CA	Check Data Acquisition
9	RAM TEST	RAM Test
15	EXIT	Reset / Goto previous Menu
