Calibration Pattern

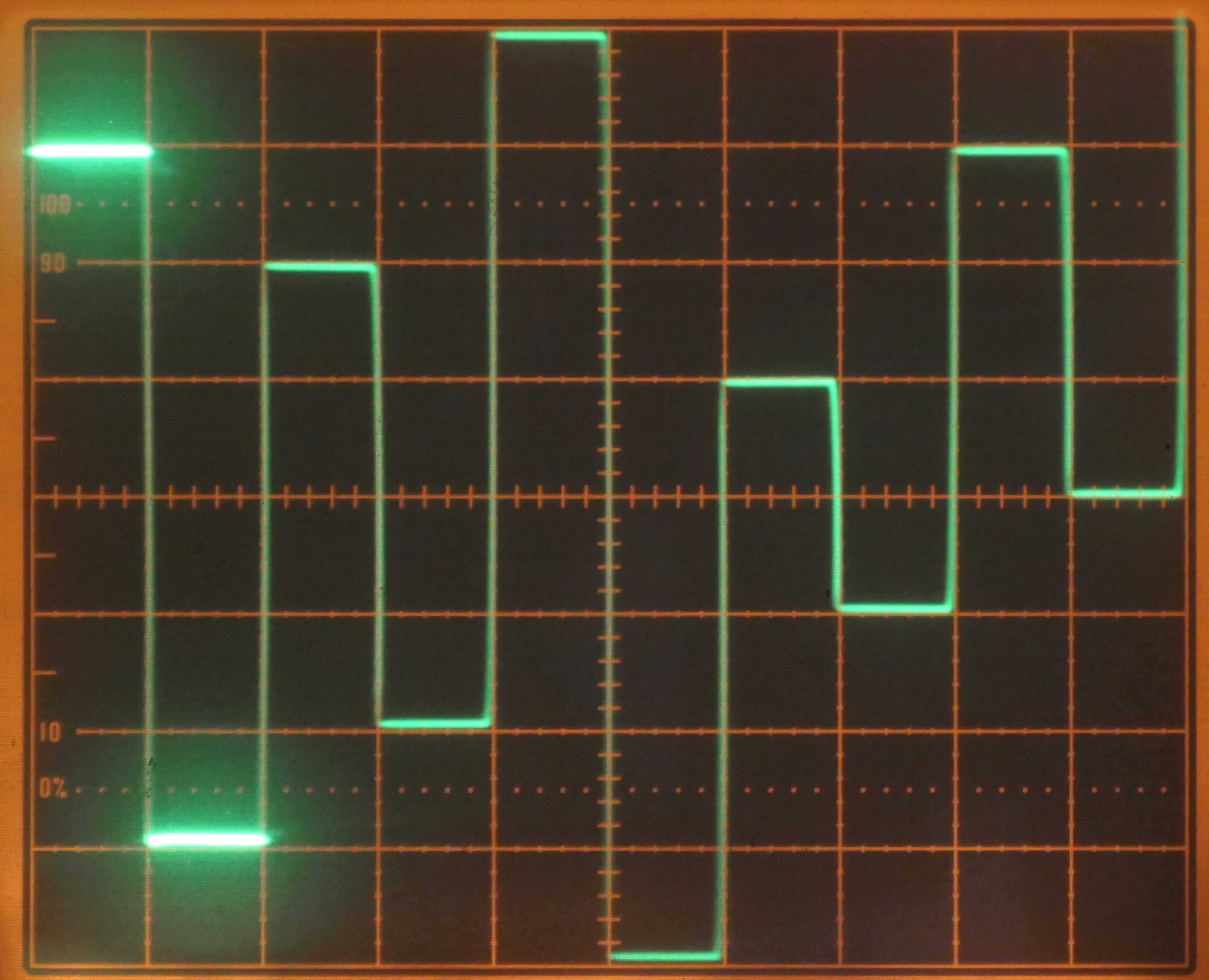

Calibration Waveform

This waveform display has four purposes:

  1. Check for correct operation of the Display Generator in the Y-T mode. (Y-T displays amplitude (Y) against time (T).)

  2. Check for correct zero logic operation of the Display Generator.

  3. Check vertical compensation of the Display Generator.

  4. Check the Display Generator vertical and horizontal gain and positions.
